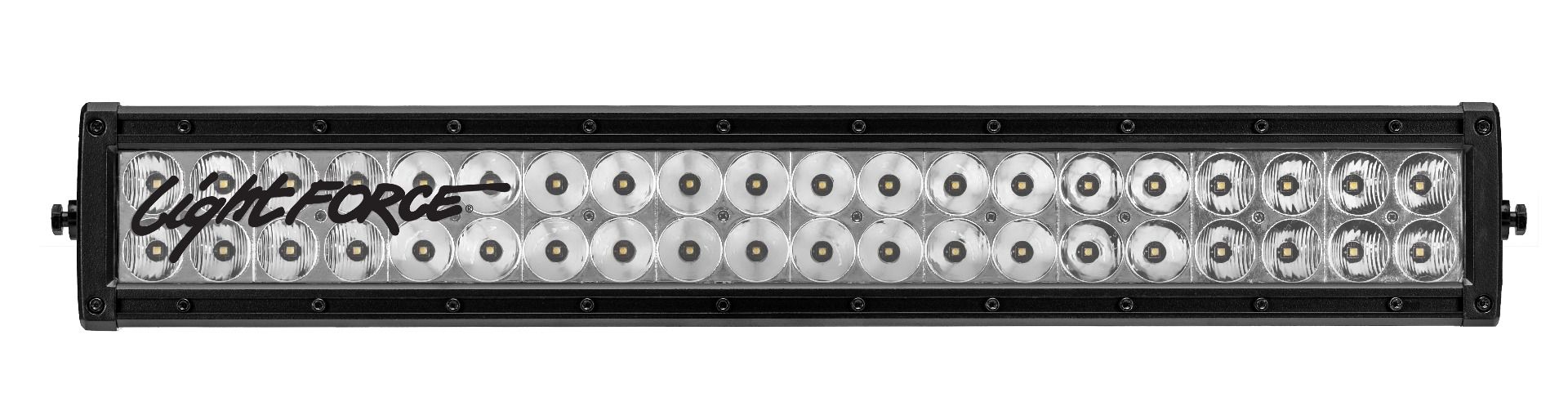

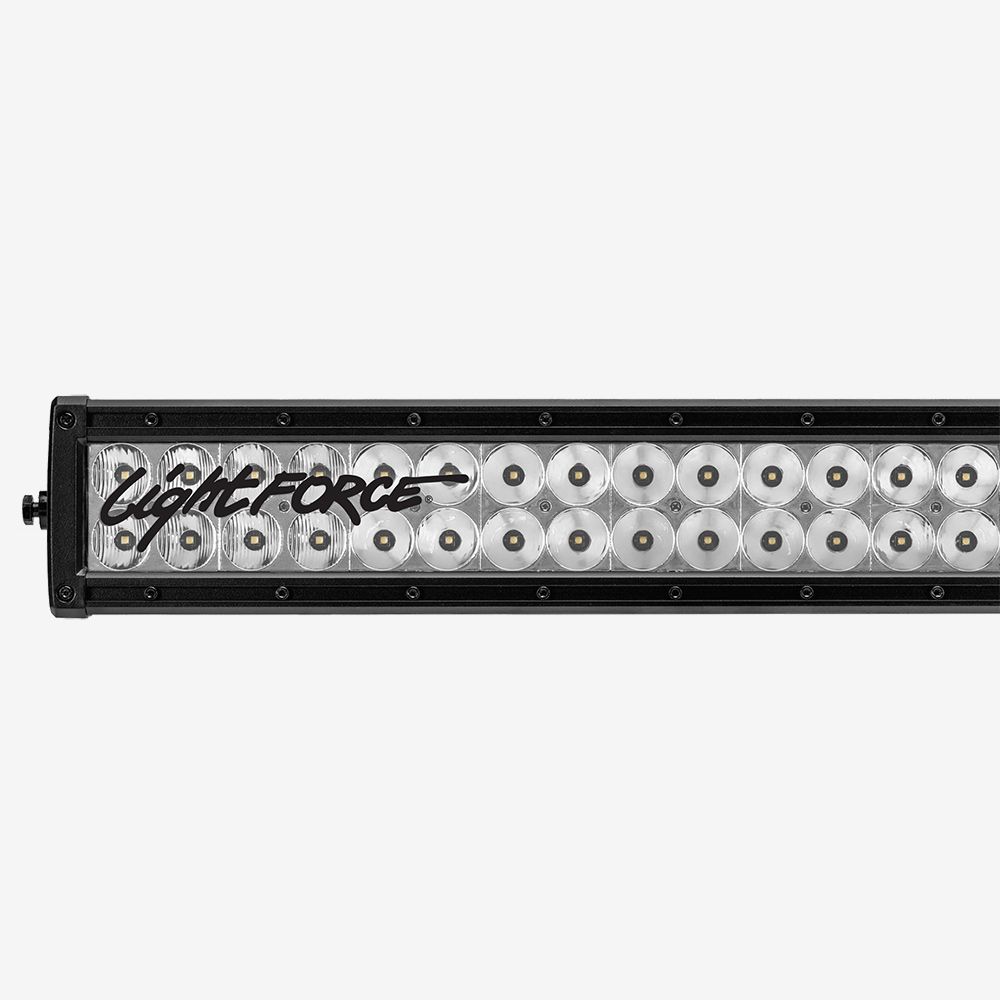

LIGHTFORCE 20" Double Row LED Bar

Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.

Product Details

What's in the box

• 1 x Lightforce Dual Row LED Bar
• 1 x Full wiring harness (including relay and switch connector)
• 2 x Stainless steel brackets and hardware
• 1 x User instructions

Features

• Extruded aluminium body with black anodized coating
• IP69K rated to protect against moisture / contaminant ingress
• Hard coated, scratch and high impact resistant polycarbonate lens
• Custom moulded strain relief connector fitted to military spec cable
• Genuine Gore® waterproof membrane with mechanical seal
• Over, under and reverse voltage protection
• Pulse width modulation thermal management circuitry
• Protected against electromagnetic and radio frequency interference (RFI)
• Stainless steel brackets and mounting hardware
• Comprehensive wiring harness
• Broad operating voltage range of 10 ~ 36 volts
• Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
• Deutsch waterproof connectors
• RoHS certified

Specifications

Distance:1 lux at                         569m

Distance: 0.25 lux at                  1138m

Effective Lumens                        7472

Raw Lumens                                14,080

Colour Temperature                    5000K

Current Draw                               10.8Amps @ 13.2V

Voltage Range                             10V - 36V DC

Wattage                                        176W

Ingress Protection Rating            IP69K

Weight                                           3.17kg
